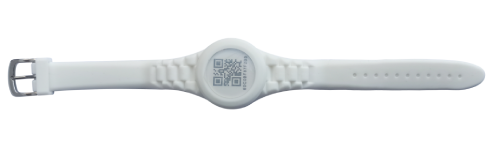

WRISTBAND Bluetooth® WB100 BEACON
Description – Application
The WRISTBAND Bluetooth® WB100 BEACON is compatible with Bluetooth® 5.0 standard and it is designed to full fill all requirements for people flow management and secure access control use cases.
Thanks to its ultra-low power consumption, the beacon guaranties un-surpassed battery lifetimes.
Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
All beacon configuration parameters can be updated over-the-air through a specific profile service. A secure operational mode is also available and based on an AES-128 crypto algorithm.
The wristband offers also a push button function.
An optional NFC function can be added in order to provide extra functionalities as registration, access control or micro-payments.
Options
The WRISTBAND Bluetooth® WB100 BEACON can be proposed with:
- NFC function to provide extra functionalities as registration, access control or micro-payments
- LED
The WRISTBAND Bluetooth® WB100 BEACON can be proposed in different colors and with an extra barcode or QR code using silkscreen or Offset printing as well as laser engraving technology.
Characteristics
| Technology |
Eddystone (UID, TLM, URL), iBeacon and AltBeacon protocols supported Accelerometer sensor Switch Optional additional NFC Forum Tag |
| Standards |
Bluetooth® Low Energy V 5.0 ISO/IEC15693 (NFC Forum Tag Type 5) ISO/IEC14443 (NFC Forum Tag Type 2)
|
| Battery Lifetime | Up to 5 years depending on the Bluetooth® beacon parameters |
| Reading Range |
Up to 100 meters for Bluetooth® Low Energy LOS of 200 meters Up to 10 cm for the NFC interface (option) |
| Accelerometer Sensor | User-selectable full scales of ±2g / ±4g / ±8g / ±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz |
| Dimensions | Tag : 36 x 32 x 11 mm – Strap : 241 mm |
| Material | Silicone and stainless-steel closure |
| Thermal Properties | – 30 to + 60 °C / – 22 to + 140°F |
| Chemical Properties | IP67 (1m, 24h) |
| Certificates | RoHS & REACH conform. Conflict free sourcing www.conflictfreesourcing.org |
